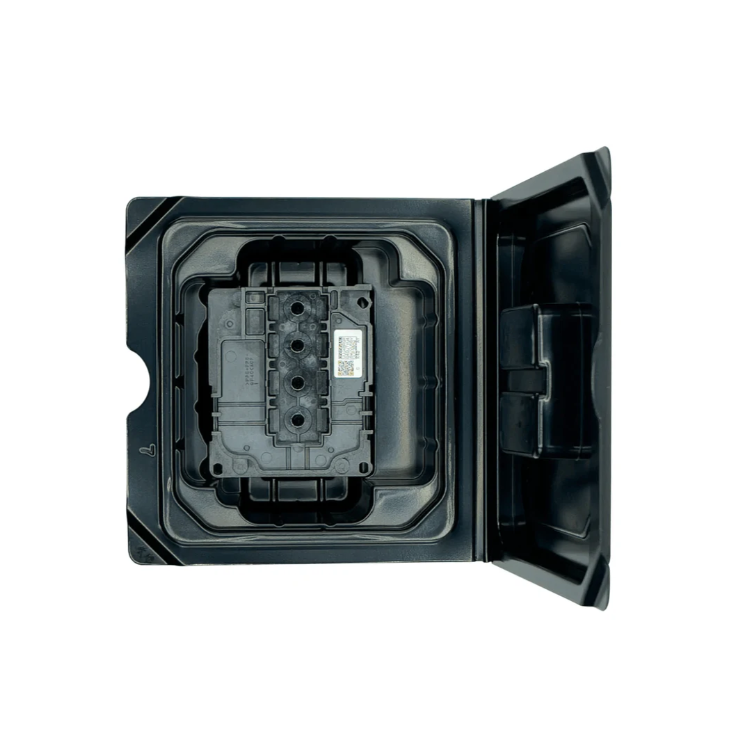

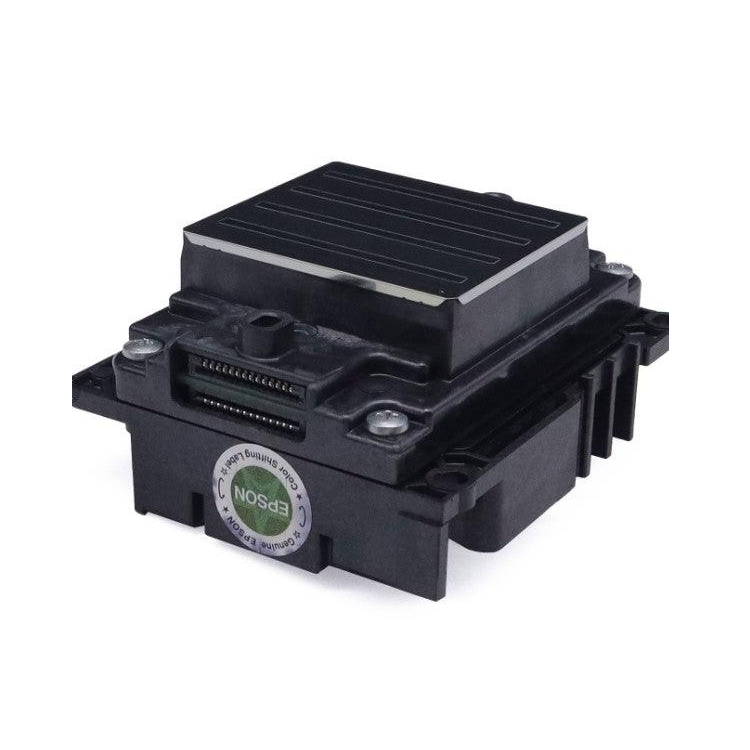

The Epson I3200-U1 UV is a cost-efficient 1.33-inch-wide MEMS printhead designed to deliver high productivity and outstanding image quality, featuring a 600 dpi high-density resolution. It is compatible with UV inks and comes unlocked for flexible use.
Warranty: Due to the nature of DTF inks, we are unable to accept returns, exchanges, or refunds once the printhead has been installed. All sales are final.
Specifications :
- Ink Type : UV
- Type : PrecisionCore MicroTFP printhead
- Width x Depth x Height: 69.1 x 59.4 x 35.6 mm
- Weight : 82g
- Number of nozzle : 3200
- Nozzle pitch/nozzle row : 1/300 inch
- Nozzle rows: 8 rows
- Nozzle Resolution : 300 noi/row 600 npi/2 rows
- Max. number of color inks : 4 colors
- Effective print width : 33.8 mm (1.33 inches)
-
Droplet ejection performance :
Binary : 5 plat 43.2 kHz
3 levels grey scale : 6, 12.5 pl at 21.6 kHz
4 levels grey scale 3.8, 6.2, 9.3 pl at 21.6 kHz - Viscosity range : 5-7 mPa·s
- Printhead carries a manufacturer warranty.
- Country of origin : Japan
