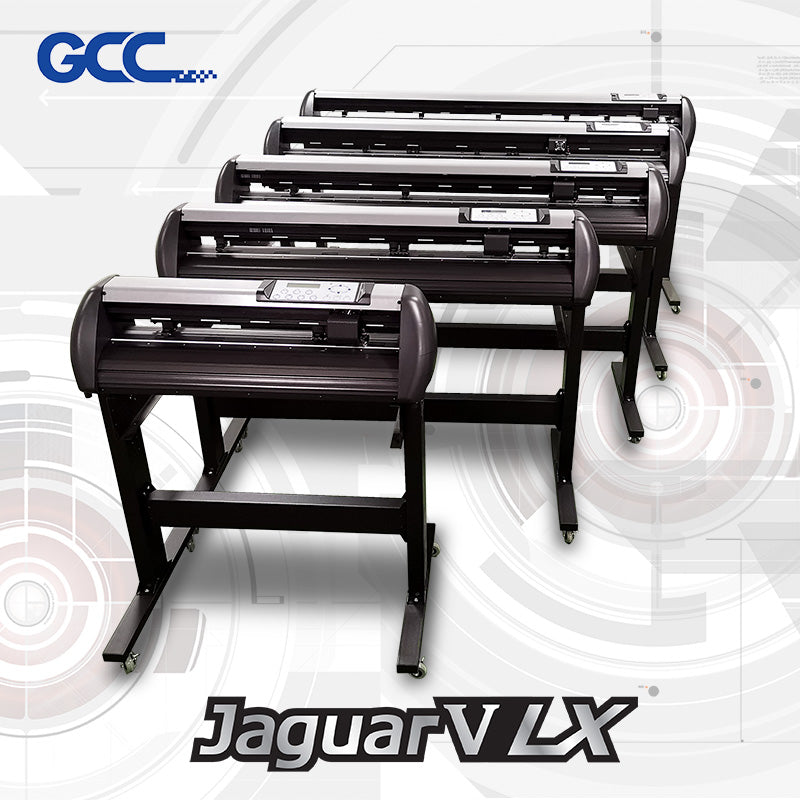

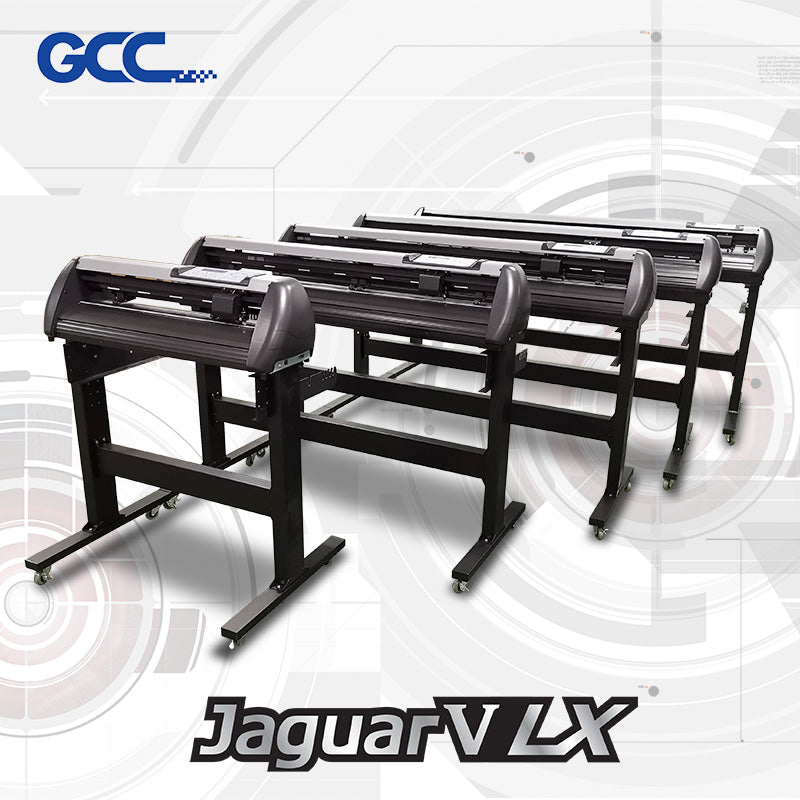

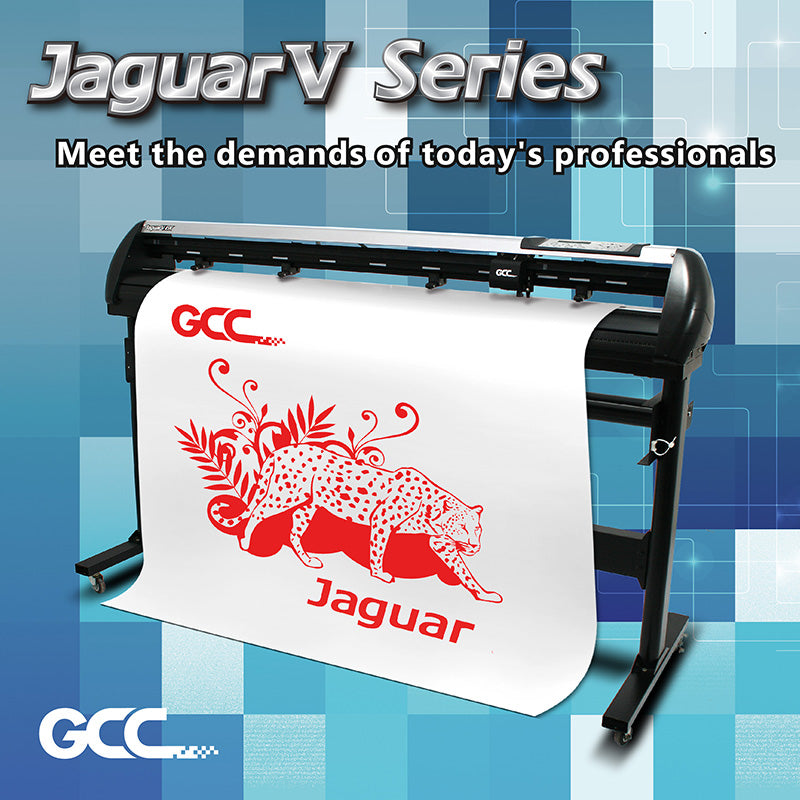

GCC Jaguar V LX Vinyl Cutter (5 Sizes)
GCC equipment from your Buena Park supplier
With the accurate Enhanced AAS II, reliable tracking capability, and intuitive features to meet the demands of today's professionals, the Jaguar V series represents the apex of vinyl cutting plotter technology.
🎨 5 options
📋 Specifications
Details
✨ Features
Key features
Enhanced aas ii contour cutting system
The Jaguar V series features a standard Automatic-Aligning System (AAS II) to guarantee precise contour cutting by automatically detecting the registration marks on digitally produced images.
Section cutting
Section cutting divides the long plot data into sectional output jobs to gain higher cutting quality and increase precision. GCC Jaguar V series scan registration mark of section 1 and cut the plot data in section 1, and then it scan registration mark of section 2 and cut the plot data in section 2, and so on.
Segmental positioning
Jaguar V series features Segmental Positioning function which can correct the crooked print. Printed image may be crooked because the printing shifts, and Segmental Positioning function can scan the registration marks one by one automatically to calibrate shift.
Auto-rotation
New registration marks defined to detect material feeding direction. Jaguar V detects the unique registration marks to distinguish material feeding direction and rotate cutting content automatically. You don’t need to rotate the material by yourself.
Triple port connectivity
Jaguar V series supports triple port connectivity with USB, serial and Ethernet ports. The USB port provides faster and convenient data transmission between the computer and Jaguar V. Ethernet connection enables multiple Jaguar V to be operated by one PC and multiple PCs to share a single unit. Triple port connectivity provides sign makers a great flexibility for data transmission.
Innovative tangential mode
The tangential mode performs clean cuttings, diminutive letterings and intricate graphics which yield smooth corners and sleek edges on thick materials.
Media support system
The media support system is fully adjustable. It supports media on standard cores and resolves media drifting and alignment problems to ensure better tracking.
User-friendly control panel
The easy-to-use and multi-language control panel can remarkably simplify complex tasks. It provides various functional settings to meet users' needs.
Selective pinch roller positioning
Each pinch roller can be operated respectively to selective position wherever is proper to optimize its utility
📌 Details
Gcc one-click windows driver
GCC cutting plotters include an One-click Windows driver that allows sign makers to edit images in
CorelDRAW or Adobe Illustrator and output directly to GCC cutting plotters.
INGENIOUS MEDIA BASKET (optional item)
Equipped with a unique media basket, Jaguar V series ingeniously keeps your vinyl off the floor and away from dust or contaminants. Your production will be a clean and efficient operation.
📌 Details
Notes
- Compatible with Windows 7 and above & MAC OS X 10.6 and above. (*Purchasing serial number for “Sure Cuts A Lot” software to work with Mac OS.)
- The specification and data sheet may vary with different materials used. In order to obtain the best output quality, please maintain the machine regularly and properly.
- GCC reserves the right to change the specifications at any time without notice.
- GCC certified material in tracking is Avery MPI 3000.
- The above listed specification values are effective only when operated with media certified by GCC.
📋 Specifications

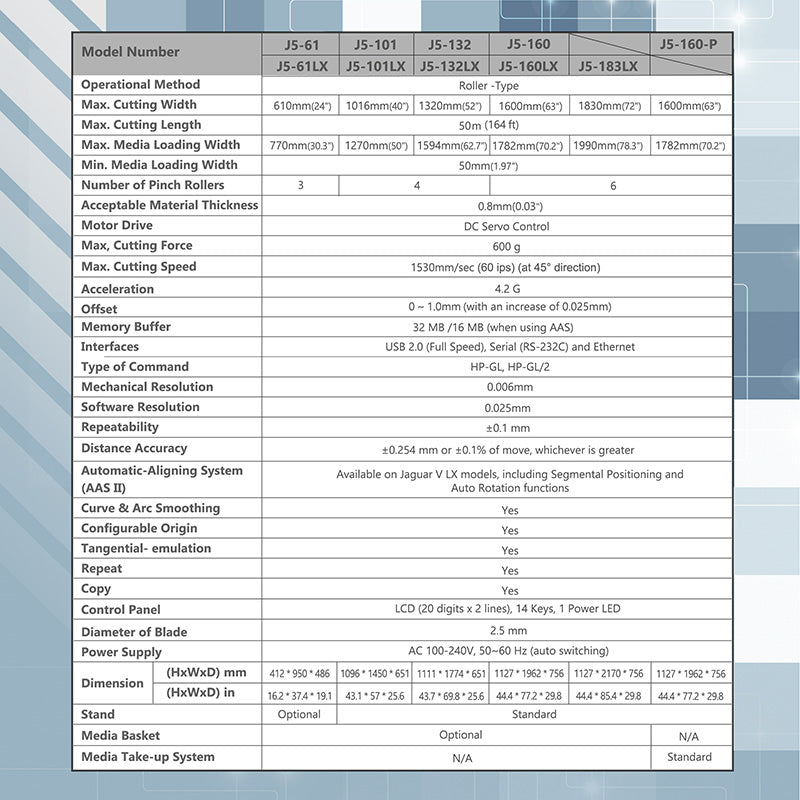

Specification

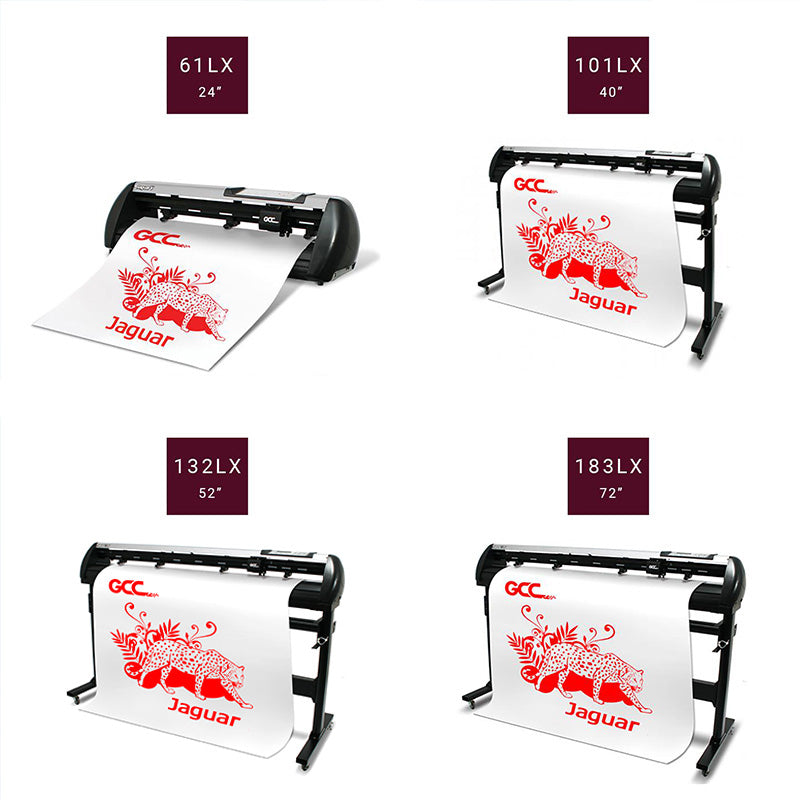

| Jaguar V Series | J5-61 LX | J5-101 LX | J5-132 LX | J5-183 LX |
|---|---|---|---|---|
| Operational Method | Roller-Type | |||
| Max.Cutting Width | 610mm(24 in) | 1016mm(40 in) | 1320mm(52 in) | 1830mm(72 in) |
| Max.Cutting Length | 50m(164 ft) | |||
| Max.Media Loading Width | 770mm(30.3 in) | 1270mm(50 in) | 1594mm(62.7 in) | 1990mm(78.3 in) |
| Max.Media Loading Width | 50mm(1.97 in) | 300mm (11.8 in) | ||
| Number of Pinch Rollers | 3 | 4 | 6 | |
| Acceptable Material Thickness | 0.08mm(0.03 in) | |||
| Motor Drive | DC Servo Control | |||
| Cutting Force | 0~600g | |||
| Max.Cutting Speed | 1530 mm/sec(60 ips)(at 45° direction) | |||
| Acceleration | 4.2G | |||
| Offset | 0~1.0 mm(with an increase of 0.025 mm) | |||
| Memory Buffer | 32MB/16MB (when using AAS) | |||
| Type of Command | HP-GL, HP-GL/2 | |||
| Mechanical Resolution | 0.006 mm | |||
| Software Resolution | 0.025 mm | |||
| Repeatability | ±1 | |||
| Distance Accuracy | ±0.254 mm or ±0.1% of move, whichever is greater | |||
| Automatic-Aligning System (AAS 2) | Available on Jaguar 5 LX models, including Segmental Positioning and Auto Rotation functions | |||
| Curve & Arc Smoothing | Yes | |||
| Configurable Origin | Yes | |||
| Tangential-emulation | Yes | |||
| Repeat | Yes | |||
| Copy | Yes | |||
| Pouncing | Optional | |||
| Control Panel | LCD(20 digits x 2 lines), 14 Keys, 1 Power LED | |||
| Diameter of Blade | 2.5 mm | |||
| Power Supply | AC 100-240V, 50~60 Hz(auto switching) | |||
| Dimension (HxWxD)mm | 412*950*486 | 1096*1450*651 | 1111*1774*651 | 1127*2170*756 |
| Dimension (HxWxD)in | 16.2*37.4*19.1 | 43.1*57*25.6 | 43.7*69.8*25.6 | 44.4*85.4*29.8 |

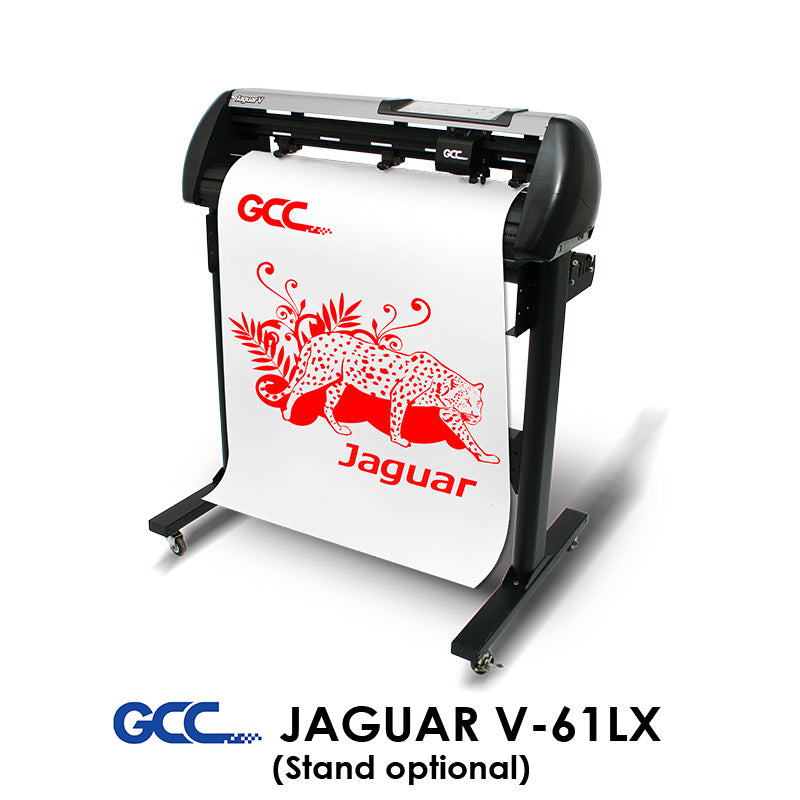

| Stand | Optional | Standard | ||

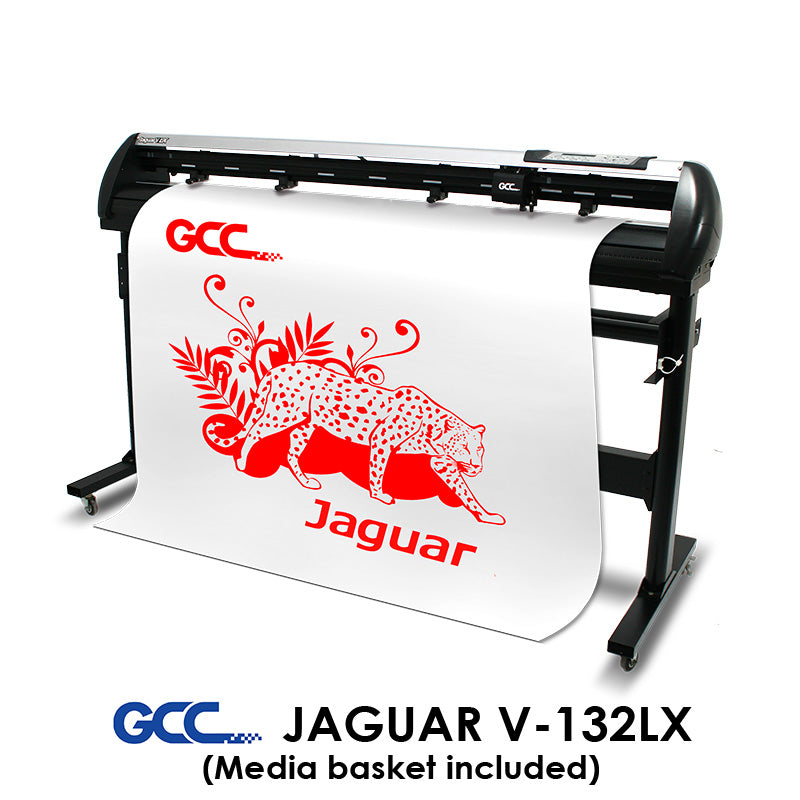

| Media Basket | Optional | Included |
