Geo Knight DK20SP Heat Press
Geo Knight DK20SP Heat Press

Geo Knight DK20SP Air Operated Swing Away Heat Press 16" x 20"

Product code: DK20SP

Regular price $2,950.00
Shipping calculated at checkout.

Geo Knight DK20SP Heat Press

Geo Knight DK20SP Air Operated Swing Away Heat Press

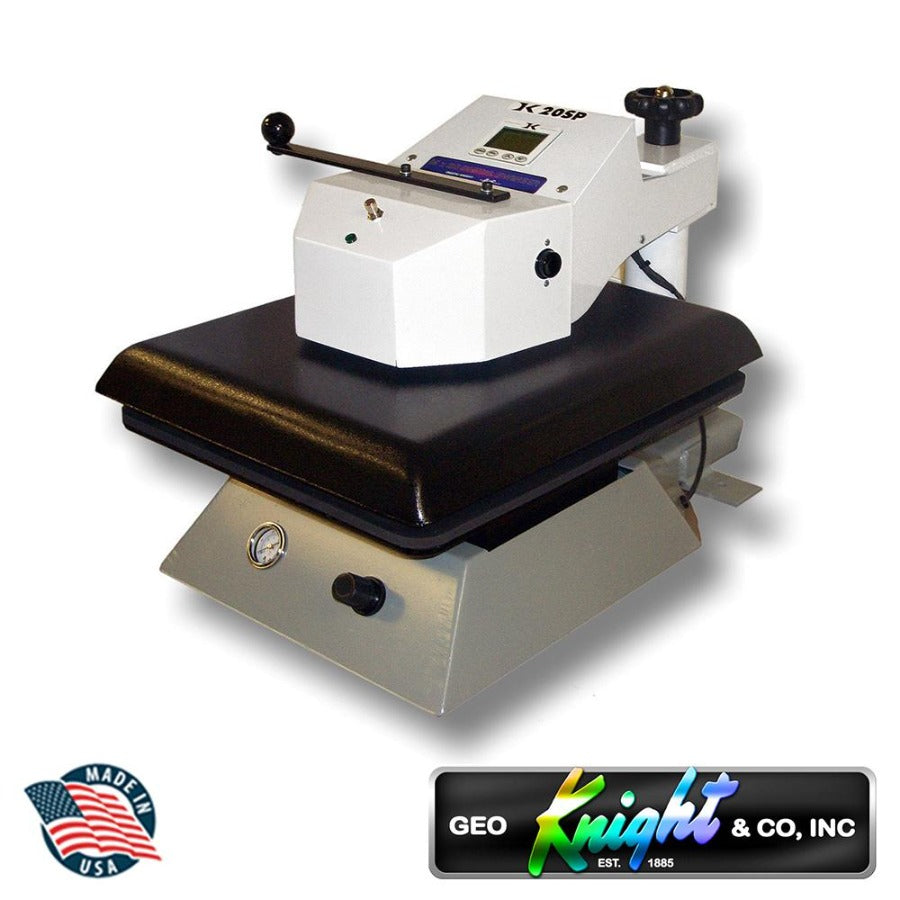

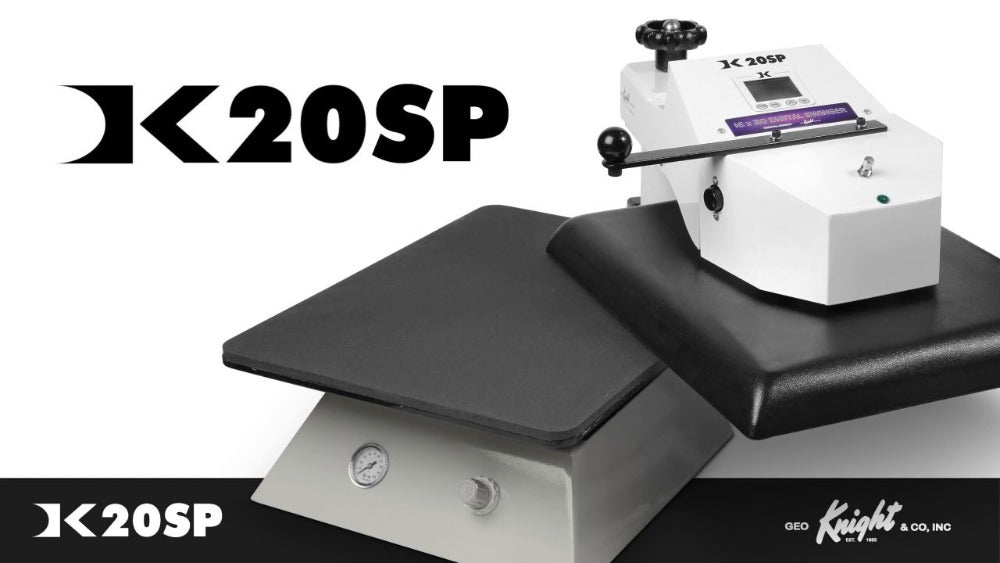

The DK20SP is an air-operated automatic table top swing-away heat transfer press. The DK20SP provides a production oriented heat press with the benefits of push button operation, fully digital temperature & time control, and solid casting design with an affordable automatic heat press price. It is available in a 16" x 20" heater block size.

The DK20SP utilizes the same Digital Knight control system as the DK20S series, and operates with a smooth swing-away fashion instead of shuttling. For demanding press runs and super consistent results, the DK20SP is an ideal press for meeting requirements that go beyond what a manual transfer press and operator can handle. The DK20SP is the industrial grade mid-range solution between heavy duty manual heat presses such as the DK20 and DK20S and high production 394 Factory Shuttle Press machines.

*This product is excluded from all promotional discounts and offers.

USA Shipping:
Ships via LTL Freight only due to the nature of the parcel.
For the shipping cost, please contact or e-mail us for a quote:
+1 (714) 523-0344 /

Shipping cost will be calculated separately and depends on the shipping location (commercial/residential).

Payment can be made on Custom Payment.

• Fully digital temperature control 32°-600°F range
• Automatic digital timer & dual pre-press timer
• Air regulator and gauge 20-100 PSI range (compressor req)
• Total applied force of 3000 lbs max
• 70 Programmable presets
• Solid steel welded framework
• Interchangeable tables
• SuperCoil-Microwinding™heater technology
• Accommodates materials up to 2" thick
• Temperature readout accuracy +-2°F – can show °C or °F
• User selectable end-of-cycle alarms
• Records number of pressing cycles done
• Teflon-coated 3/4″ thick heat platen
• Lifetime warranty on heat platen
• 3-year warranty on control
• 1 year warranty on entire press
WEIGHT: 220 lbs.
ELECTRICAL: 1800W / 15A / 120V
DIMENSIONS: 32" D x 27" W x 18" H

See how it works!
